The 1970 Honda CT-70 Mini Trail: A Compact Icon of Adventure

The 1970 Honda CT-70 Mini Trail: A Compact Icon of Adventure

Introduction

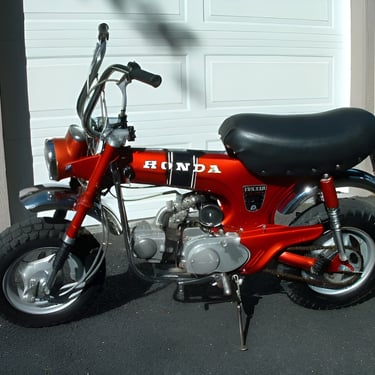

The 1970 Honda CT-70 Mini Trail, affectionately known as the "Trail 70," stands as an iconic mini bike that captured the hearts of riders young and old. This compact, versatile machine bridged the gap between toy and serious motorcycle, offering a unique blend of fun, practicality, and adventure that would leave an indelible mark on the world of motorcycling.

History and Development

The Honda CT-70 Mini Trail was introduced in 1969 as part of Honda's expanding lineup of small-displacement motorcycles. It was a natural evolution from Honda's earlier mini bikes, particularly the Z100, which had established the popularity of compact, off-road capable machines.

The CT-70 was designed to appeal to a wide range of riders, from children to adults, by offering a perfect balance of size, power, and versatility. Its development was driven by Honda's philosophy of making motorcycling accessible to everyone. The 1970 model year saw refinements and improvements to the original design, further enhancing its appeal and capabilities.

The CT-70 quickly became a bestseller, cementing Honda's reputation for producing reliable, user-friendly motorcycles that could be enjoyed by the whole family.

Design and Features

The 1970 Honda CT-70 Mini Trail boasted a design that was both innovative and practical. Key features included:

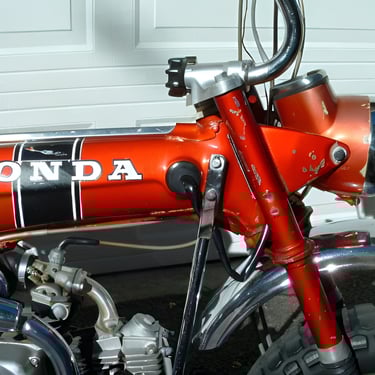

1. Folding handlebars: This unique feature allowed the bike to be easily stored or transported in a car trunk.

2. "T-Bone" frame: A distinctive frame design that provided strength and stability while keeping the bike compact.

3. Step-through design: Made mounting and dismounting easy for riders of all sizes.

4. Dual rear sprockets: Offered both high and low-speed gearing for versatility in different terrains.

5. Knobby tires: Provided traction for off-road use while still being suitable for paved surfaces.

6. Upswept exhaust: Improved ground clearance for trail riding.

7. Robust suspension: Included telescopic front forks and rear shocks for a comfortable ride.

8. Compact fuel tank: Integrated seamlessly into the frame design.

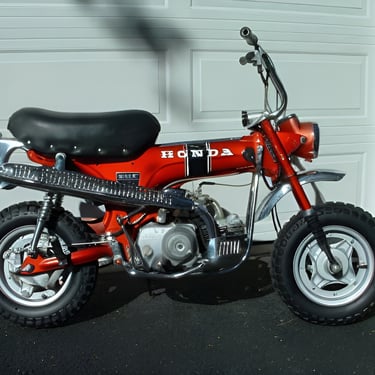

The CT-70's appearance was characterized by its bright colors (often Candy Ruby Red) and chrome accents, giving it a fun and appealing look. Its small size, combined with these thoughtful design elements, made it approachable and unintimidating to new riders while still offering enough capability to satisfy more experienced enthusiasts.

Technical Specifications

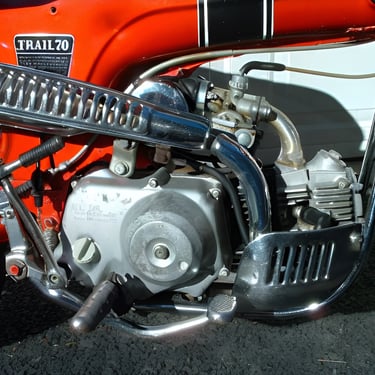

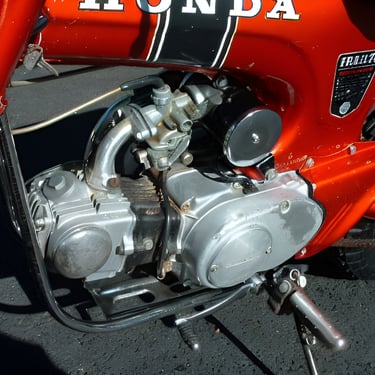

The 1970 Honda CT-70 Mini Trail was powered by a compact yet capable engine:

Engine:

• Type: Air-cooled, four-stroke, single-cylinder

• Displacement: 72cc

• Bore x Stroke: 47mm x 41.4mm

• Compression Ratio: 8.8:1

• Carburetion: Keihin 16mm

• Ignition: Magneto

• Starting: Kick-start only

• Max Power: 6.0 hp @ 9,000 rpm

• Max Torque: 3.8 lb-ft @ 7,000 rpm

Transmission:

• 3-speed manual or 4-speed semi-automatic (depending on model)

• Dual-range gearbox with high and low ratios

Chassis and Dimensions:

• Frame: Steel tube, T-bone design

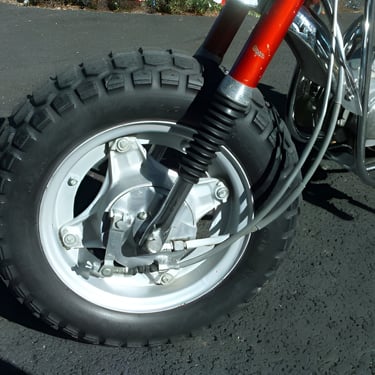

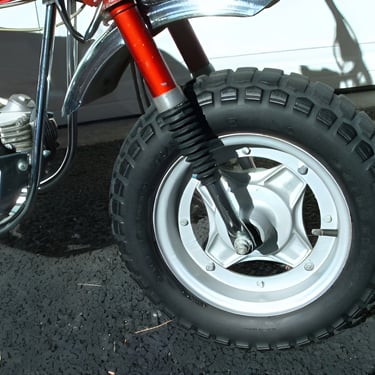

• Front Suspension: Telescopic fork

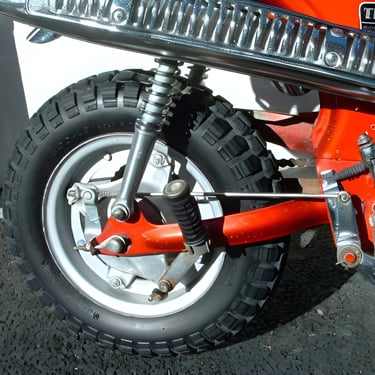

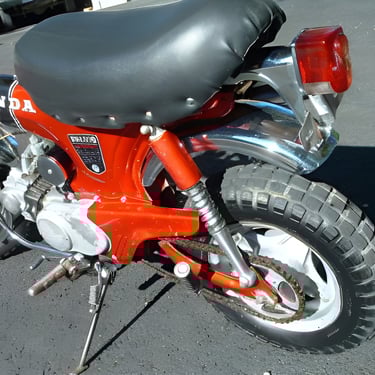

• Rear Suspension: Swingarm with dual shock absorbers

• Brakes: Drum brakes front and rear

• Wheels: 10-inch, wire-spoked

• Wheelbase: 41.3 inches (1049mm)

• Seat Height: 28.5 inches (724mm)

• Ground Clearance: 6.3 inches (160mm)

• Dry Weight: Approximately 143 lbs (65 kg)

• Fuel Capacity: 1.3 gallons (4.9 liters)

These specifications made the CT-70 lightweight and manageable while still providing enough power for both on and off-road adventures.

Performance and Handling

The 1970 Honda CT-70 Mini Trail offered impressive performance for its size. Its 72cc engine provided enough power for both trail riding and urban commuting, with a top speed of around 45 mph (72 km/h). The bike's lightweight design and low center of gravity contributed to excellent maneuverability, making it easy to handle in tight spaces and on challenging terrain.

The dual-range gearbox was a standout feature, allowing riders to switch between high and low ratios. This versatility made the CT-70 equally capable of cruising on roads and tackling steep off-road inclines. The bike's suspension, while basic, provided adequate comfort for its intended use, soaking up bumps and irregularities on both paved and unpaved surfaces.

Despite its small wheels, the CT-70 offered surprising stability, inspiring confidence in riders of all skill levels. Its approachable nature and forgiving handling characteristics made it an ideal platform for beginners to learn the fundamentals of motorcycling, while still providing enough capability to keep experienced riders entertained.

Impact and Legacy

The 1970 Honda CT-70 Mini Trail left an indelible mark on the motorcycling world. Its popularity helped establish Honda as a leader in the mini bike market and introduced countless riders to the joys of motorcycling. The CT-70's success paved the way for future small-displacement Honda models and influenced the design of trail bikes for years to come.

The CT-70's impact extended beyond the motorcycle industry. It became a cultural icon, representing freedom, adventure, and the spirit of the 1970s. Many riders got their start on a CT-70, fostering a lifelong passion for two-wheeled adventures.

Today, the 1970 Honda CT-70 is highly sought after by collectors and enthusiasts. Its enduring popularity has led to a thriving restoration scene and even inspired modern interpretations like the Honda Trail 125. The CT-70's legacy continues to influence motorcycle design and culture, cementing its place as one of the most beloved mini bikes in history.

Conclusion

The 1970 Honda CT-70 Mini Trail stands as a testament to Honda's innovation and understanding of riders' needs. Its perfect blend of simplicity, versatility, and fun factor made it an instant classic. Decades after its introduction, the CT-70 continues to captivate enthusiasts, serving as a reminder of the pure joy of motorcycling and the enduring appeal of a well-designed machine.
